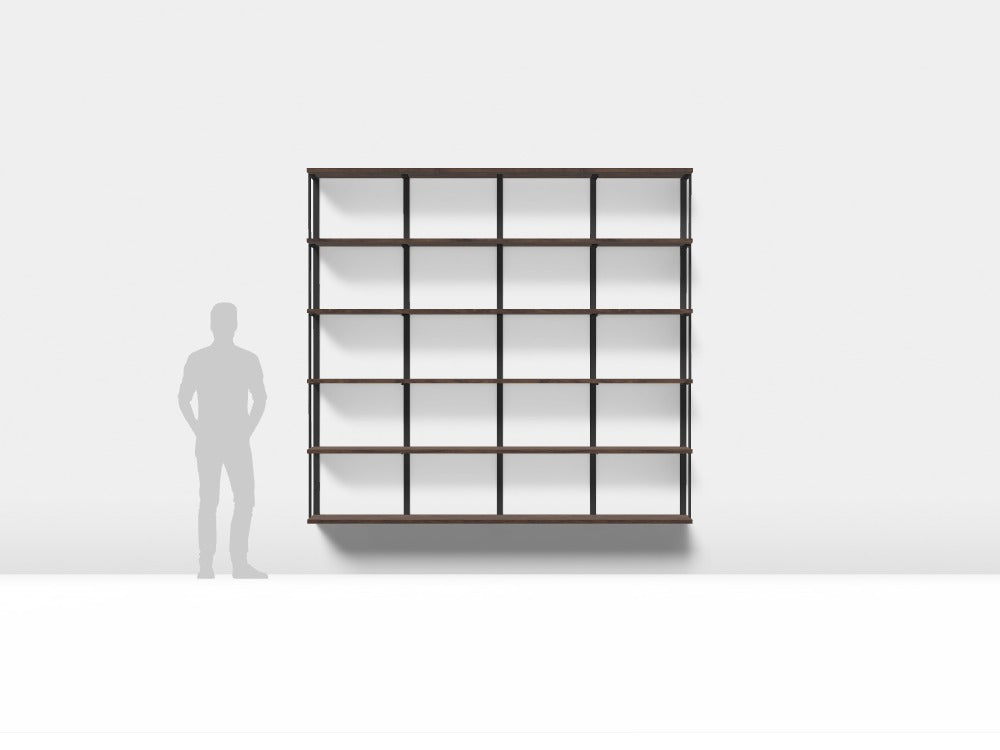

Wall Mount Shelves - Custom Design Ref: 1AP3HOU

Wall Mount Shelves - Custom Design Ref: 1AP3HOU

  • Made in USA with Solid Wood & Steel
  • Durable, Eco-Friendly Finishes
  • FREE SHIPPING*
$6,408.19
/
Size chart

Use this size chart as a planning guide to help configure your custom wall-mounted shelving system. Read our standard sizing information, recommended bracket quantities, and shelf bracket dimensions so you can confidently choose the right setup for your space.

VISUAL FOR SHELF LENGTH x NUMBER OF WALL-MOUNTED BRACKETS

Our shelving systems are available in a wide range of lengths, heights, and configurations to accommodate everything from compact floating shelves to large multi-shelf wall installations.



STANDARD SHELF BRACKET DIMENSIONS
You'll also find standard shelf bracket dimensions, making it easier to determine the overall footprint of your shelving project before ordering. We understand that every space is different, which is why custom bracket dimensions are also available for projects that require unique sizing. *Contact us for Custom Bracket Dimensions.
*Contact us for Custom Bracket Dimensions
Heavy-duty wall mounted shelf brackets. Solid steel shelf brackets available in 11 different standard sizes. High weight capacity for floating wall shelves. Handmade in USA

SHELF SPACING CHART

This size chart displays standard shelf and bracket measurements. The dimensions shown are intended to help plan your shelving layout.
  • Fast Turnaround
  • 2 Year Warranty
  • First Class Customer Service
*Images shown may differ from individual selections


Specification:
Material - Black Walnut: 1"Thick,
Bracket Color - Black,
Number of Shelves - Six Shelves / 89.5"H,
Number of Brackets - 5 Brackets,
Shelf Length - 96",
Shelf Depth - 12" Shelf Depth (+10%),
Optional Add On - Add Bookends To Outside Brackets

Our wall-mounted shelving systems are designed to provide a clean, modern industrial look while delivering exceptional strength and durability. Each shelving unit features solid wood shelves paired with heavy-duty American steel brackets, creating a functional storage solution for residential and commercial spaces alike.

WALL MOUNTED SHELVING UNIT DIMENSIONS. SOLID WOOD SHELVES WITH HEAVY DUTY STEEL SHELF BRACKETS BY VAULT FURNITURE

Modular Shelving Units

Our shelving systems are available in any custom length, depth, and configuration to fit a variety of applications, including living rooms, kitchens, home offices, retail stores, bars, and workspace environments. Solid wood shelf lengths range from 12 inches to 96 inches, and the shelves can be mounted side by side to create expansive lengths to fill any space. Standard shelf depths are available in 8-inch, 10-inch, 12-inch and 14-inch options, but can be custom-made to any size. Depending on the shelf length selected, we recommend using the appropriate number of steel brackets to maximize support and stability.

We recommend spacing the heavy-duty wall-mounted shelf brackets every 16”-32” for optimal strength and long-term stability.  Shelves measuring 12"–42" long require 2 brackets, 43"–66" require 3 brackets, 67"–90" require 4 brackets, and shelves over 91" require 5 brackets.

heavy-duty wall mount shelf bracket size chart for vault furniture. metal bookshelf brackets from single shelf to 6 shelf brackets.

Our brackets are engineered for long-term performance and, when properly installed, can support up to 50 pounds per linear foot of shelving. Customers can choose between multiple shelf spacing options to create a custom storage setup that fits their needs. Every shelving unit is handcrafted to combine timeless design, premium materials, and reliable everyday functionality.

  • Click Here To See The Installation Manual
  • Maximum Weight Capacity: 50lbs per linear foot (evenly-distributed) if brackets spaced ≤ 24" apart
  • Maximum recommended bracket spacing: 32" apart
  • Need help figuring out how many brackets? Contact us and we will make a custom recommendation with a computer rendering.

These heavy duty shelf brackets mount to the wall several locations, hidden behind each shelf. (For example, a 3 shelf bracket will mount to the wall in 3 locations) An extremely sturdy design that is easy to install.

The number of brackets you use for your project will depend on the overall length of the shelves and the amount of weight you'd like them to bear (more brackets = higher weight capacity) For heavy duty shelving, such as a fully loaded bookshelf, we recommend placing brackets 24" apart or less.

*How the brackets are mounted to the wall directly impacts the load capacity. Different wall constructions require different kinds of mounting anchors. For this reason, we DO NOT include wall mounting anchors. We provide a detailed outline of our recommended wall anchors for the different constructions within the installation manual.
The shelves attach to the brackets in 2 locations on each shelf rung. We DO provide 3/4" wood screws to attach the wood shelves to the brackets.

FREE SHIPPING

Ships FREE in the Contiguous USA.CLICK HERE FOR MORE DETAILS

 LEAD TIME

 2-3 weeks from day of order to day of shipment. Production can be expedited to 1-2 weeks for an additional $300.  CONTACT US TO EXPEDITE YOUR ORDER.

FREE EXCHANGES

 60-Day Exchanges: FREE Exchange minus a 10% shipping fee applicable to uninstalled, vertical shelf brackets purchased in the contiguous US.

RETURNS

 60-Day Returns: Wood shelves can be returned but will have a 30% production & shipping fee, or they can be exchanged for a full refund minus a 15% production and shipping fee.    CLICK HERE FOR MORE DETAILS

LOST OR DAMAGED PACKAGES

 Each of our products is thoughtfully fabricated and packaged. However, in the rare occurrence that your package arrives damaged or lost, we will send you a replacement(s) for whatever was damaged or lost for free. * *Clear pictures must be provided within 72 hours of delivery.   CLICK HERE FOR MORE DETAILS


Not sure where to start? Click Here to book a FREE design consultation or get a quick quote. Brandi (Vault Furniture owner & certified interior designer) will follow up within 24 hours.

★★★★★

The customer service here was really above and beyond, they were so responsive to all my questions and thoughtful and friendly in their replies. And the shelves are beautiful, such high quality and well made. They were packed with so much care and they look amazing in my home. I’m already planning on purchasing again.

reclaimed wood corner bookshelf
Claudia Herr
Hillsdale, NY
★★★★★

I absolutely love my custom shelves! This creative duo are a top notch team. From the moment I purchased, they were in constant communication. The final product was delivered with such care. Thank you from the bottom of my heart for making my office space perfect!

Karen Osborn
Chicago, IL
★★★★★

I adore my shelves and am already contemplating whether I need more.

Ash shelves with brass brackets
Elisabeth Bell
Denver, CO
★★★★★

We absolutely love our vault bookshelf! It’s exactly as pictured and Brandi was a pleasure to communicate with. We plan on ordering another set for our living room! Highly recommend.

reclaimed pine shelves in surface plane finish with brass brackets
Kelly Hobza
Kenmore, WA
★★★★★

Vault Furniture was the best in every way. The wall-mounted shelves I got were such excellent quality and looked so good that I got another set. And although buying from Canada made me hesitate at first, the shipping was arranged with ease. Last but not least, Brandi was so prompt and personable - and practical, for example, by emailing me mock-up diagrams of how the shelves would fit in my home - that communicating with Vault Furniture was both useful and fun.
Thanks Vault Furniture!

Roman Andrusiak
Toronto, ON
★★★★★

We love our new wall shelf! It is incredibly sturdy, and the ash wood is beautiful - full of color variations and curls. They were extremely helpful, sending me renderings before I ordered and providing very detailed instructions for installation. The quality is superb, the function has transformed our playroom, and I would absolutely order again!

Rachel Loewenherz
Austin, Tx
★★★★★

Amazing! so happy I put in another custom order.

rustic spa shelving reclaimed wood with brass brackets
Nicole Chryst
Olympia, WA
★★★★★

First, Brandi was such a help sending me multiple [personalized] layouts to help me decide on # of brackets and width of the shelves. She is so responsive and made the whole process seamless. The shelves shipped pretty quick and everything was packaged carefully in the box. This shelving unit is so amazing! Its so unique looking and it seriously brought so much life to my living room.

Rustic modern shelving reclaimed wood with black brackets
Jennifer Freaney
Canton, CT
Black walnut solid hardwood vault furniture
solid hardwood

black walnut

Black Walnut is one of the most valuable and unique species of hardwoods in North America. The color ranges from creamy white in the sapwood to a rich brown lustrous heartwood. Black walnut wood is dark, hard, dense and tight-grained. It's prized for its strength, grain and beautiful color.
solid hardwood

Ash Shelves

A light colored, smooth-grained hardwood that grows throughout North America. It's durability, lightweight and shock-resistant characteristics have made it a favorite for baseball bats, tool handles, and furniture. However, the Emerald Ash Borer has destroyed millions of ash trees in North America. To prevent waste, we work with Pacific North West companies to ethically source ash wood.
SURFACE PLANED

RECLAIMED PINE

Once used as the floor and ceiling joists in early 20th century demolition homes, this wood is full of unique character. To achieve the "surface planed" finish, we skim off the top and bottom layer with a surface planer. This creates a flat, even surface with lighter color variation than the "natural" finish.
NATURAL

RECLAIMED PINE

Salvaged from early 20th century demolition homes, this wood is full of cool characteristics: nail holes, saw marks, plaster lines, and color variations. With the "natural" reclaimed pine, we simply sand and finish the wood. This produces a darker overall color and texture with a slightly uneven surface.
Superior Finish

powder coating

We use state-of-the-art equipment and experienced technicians to ensure that your products receive the best possible finish, every time.

Powder coating offers superior adhesion, durability, and sustainability. It creates a strong bond, lasts longer than liquid coatings, and can withstand harsh conditions. It is also eco-friendly, producing no harmful VOCs.

Impressive strength

american steel

Experience the quality of hand-welded American made steel brackets! Our skilled craftsmen use only the finest materials to ensure your shelves are both sturdy and stylish.

Wall shelving installation Vault Furniture
easy installation

diy or hire

Transform your space within hours. Say goodbye to confusing installation instructions and hello to a hassle-free setup. Clear, concise, and easy-to-follow, our instructions will have your shelves up and ready in no time!

Installaton Manual
